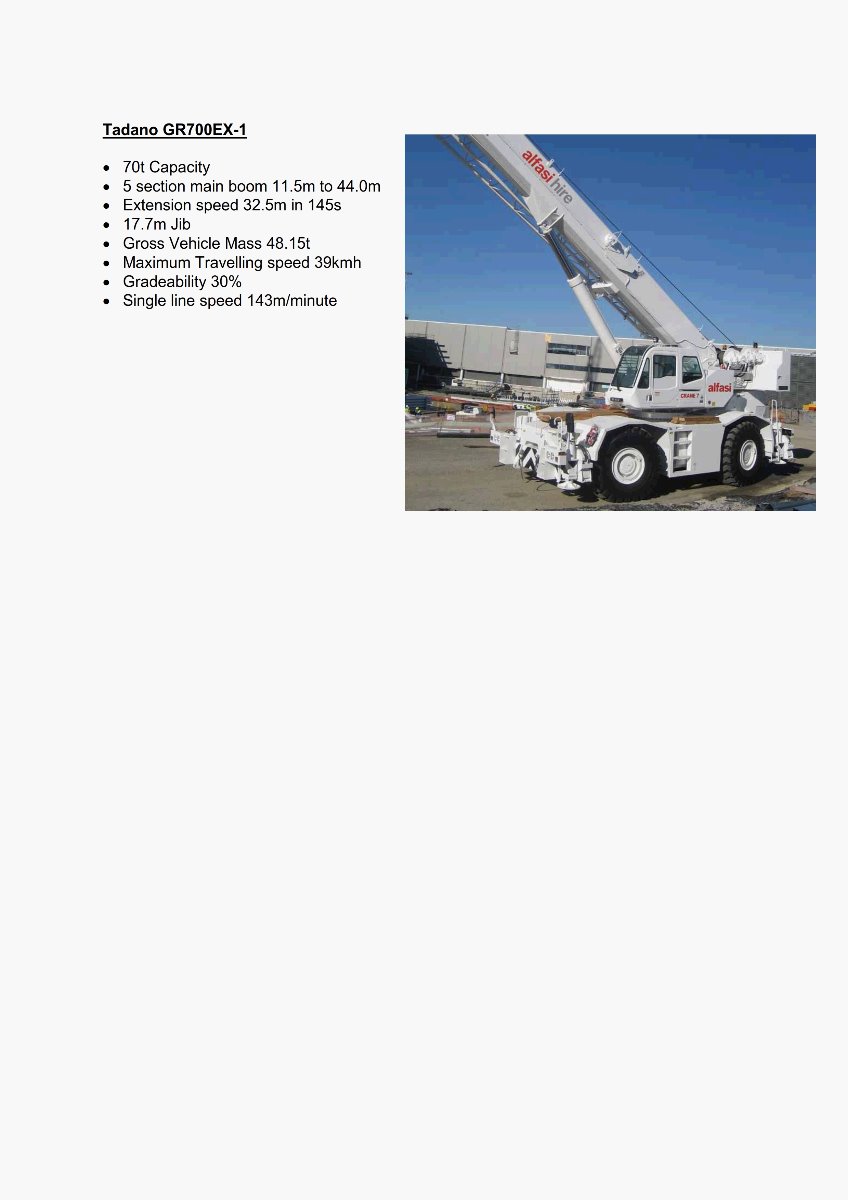

70T CRANE - TADANO GR-700EX
- 70t Capacity

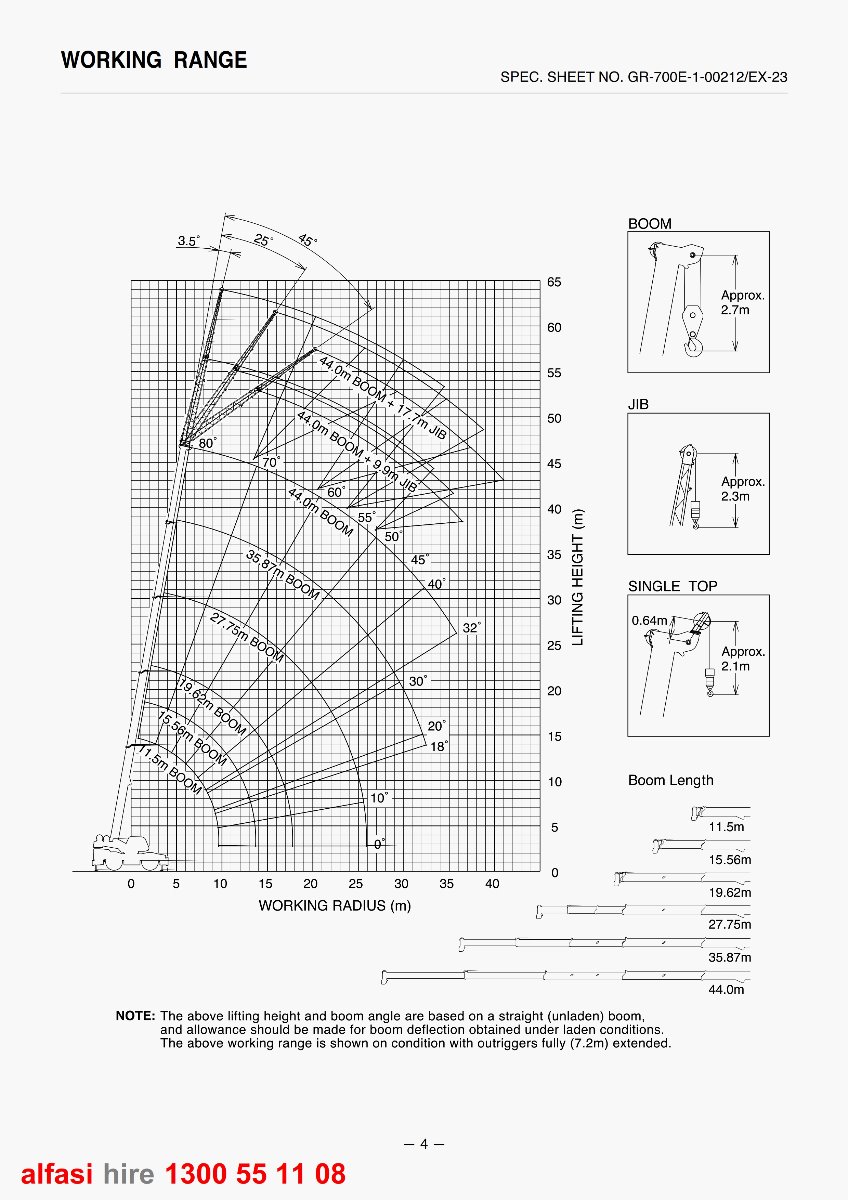

- 5 section main boom 11.5m to 44.0m
- Extension speed 32.5m in 145s
- 17.7m Jib
- Gross Vehicle Mass 48.15t
- Maximum Travelling speed 39km/h
- Gradeability 30%
- Single line speed 143m/minute
Write Your Own Review
Model Number | Model Size | Platform Height | Length | Width | Stowed Height | Weight | Capacity | Specification Pdf |
---|---|---|---|---|---|---|---|---|
TADANO GR-700EX | 70 t | - | 14.08 metres | 3.32 metres | 3.80 metres | 48315 kg | 70000 kg |
